Smart air.
Healthy spaces.
Continuous balanced fresh-air ventilation for modern, tightly-built homes — engineered to be quiet, efficient, and effortless to live with.
Built for the homes we live in today.
Tight building envelopes need mechanical ventilation. Our energy recovery ventilators move stale air out and fresh air in — while transferring heat and humidity between the streams, so your HVAC isn't fighting the weather.
Quiet ECM blowers
Forward-curved ECM motors deliver low-noise, energy-efficient airflow at every speed.
Enthalpy core
Cross-flow exchanger transfers heat and moisture year-round.
3-speed control
Low / Mid / High plus boost timers and 24V thermostat integration.
Certified
UL 1812 safety listed and CSA C439 performance verified.

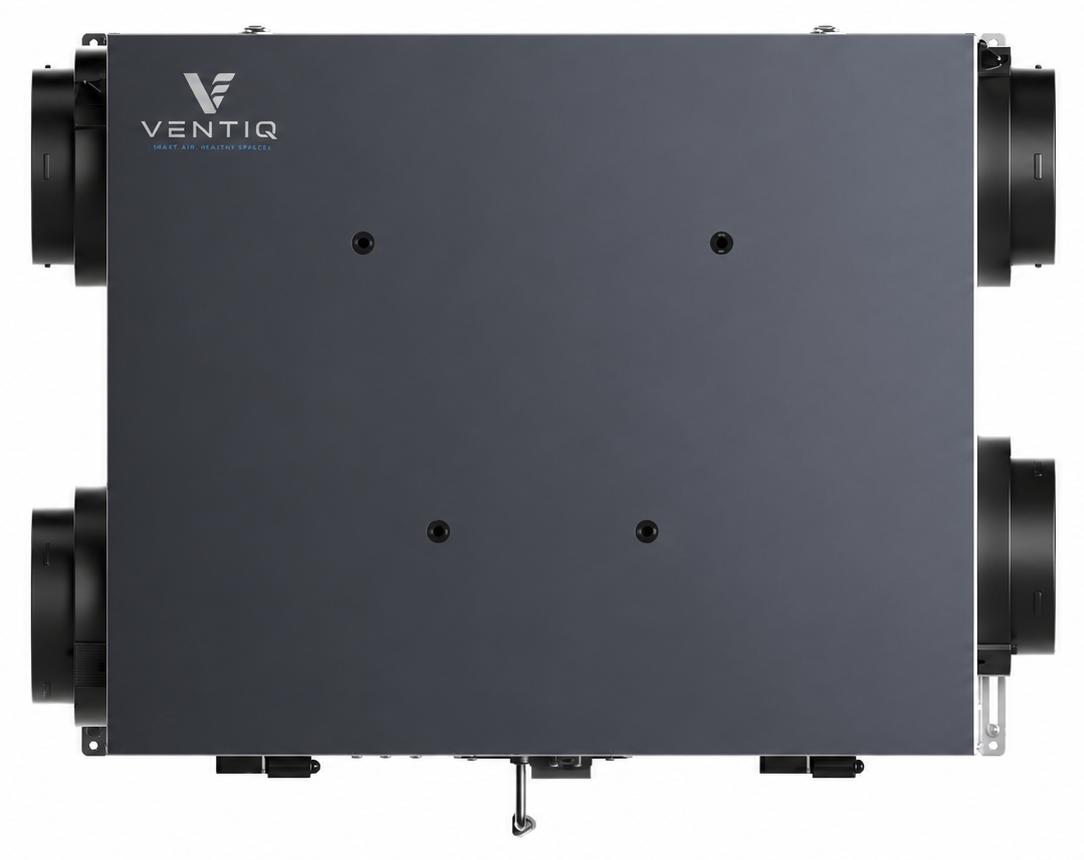

ERV-168
Whole-home fresh air for medium and large residences. 42–168 CFM at 0.4 in. w.g., MERV 8 filtration standard, three speeds, and a fully insulated EPP cabinet.
- Airflow
- 42 / 90 / 168 CFM
- Power
- 120 V · 180 W max
- Filtration
- MERV 8 (MERV 13 opt.)
- Operating
- −18 °F to 109 °F
Ready to spec Ventiq into your next project?
Submittal sheets, dealer inquiries, and technical support — our team is here to help.
ERV-168
Whole-home fresh air, quietly engineered. Balanced ventilation with cross-flow energy recovery for medium and large residences.
Engineered for installers and homeowners alike.
Adaptive airflow
Built-in balancing dampers tune supply and exhaust to match your duct system.
ECM blower motors
Forward-curved ECM blowers deliver quiet, efficient airflow across the operating range.
Three-speed operation
Low / Mid / High settings cover continuous and boost ventilation needs.
Enthalpy recovery core
Cross-flow core transfers both heat and moisture between airstreams.
Flexible mounting
Horizontal and vertical configurations for closets, attics, and utility rooms.
Tool-free service
Latch-access panels for fast filter and core inspection.
MERV 8 standard
Optional MERV 13 and carbon filter upgrades for superior IAQ.
Controls ready
Wall control included. Supports bath timers and 24V thermostat integration.
By the numbers.
All values measured at sea level under standard test conditions. Specifications subject to change.
- Power supply
- 120 V / 60 Hz / 1 Ph
- Maximum input power
- 180 W
- Minimum circuit amps
- 1.6 A
- Airflow (HH / H / L)
- 168 / 90 / 42 CFM
- External static pressure
- 0.4 / 0.2 / 0.1 in. w.g.
- Duct connection
- 6 in.
- Dimensions (H × W × D)
- 9 11/16" × 26" × 21 9/16"
- Net weight
- 43 lb
- Outdoor temp range
- −18 °F to 109 °F
- Filtration
- MERV 8 (MERV 13 / carbon optional)
- Recovery core
- Cross-flow enthalpy, non-washable
- Motor
- Brushless ECM, direct drive
- Defrost
- Recirculation defrost
- Compliance
- UL 1812 · CSA C439
Recover the energy you've already paid for.
Tight homes need balanced ventilation. Ventiq's enthalpy cores transfer heat and humidity between exhaust and intake airstreams — so fresh outdoor air arrives pre-conditioned.

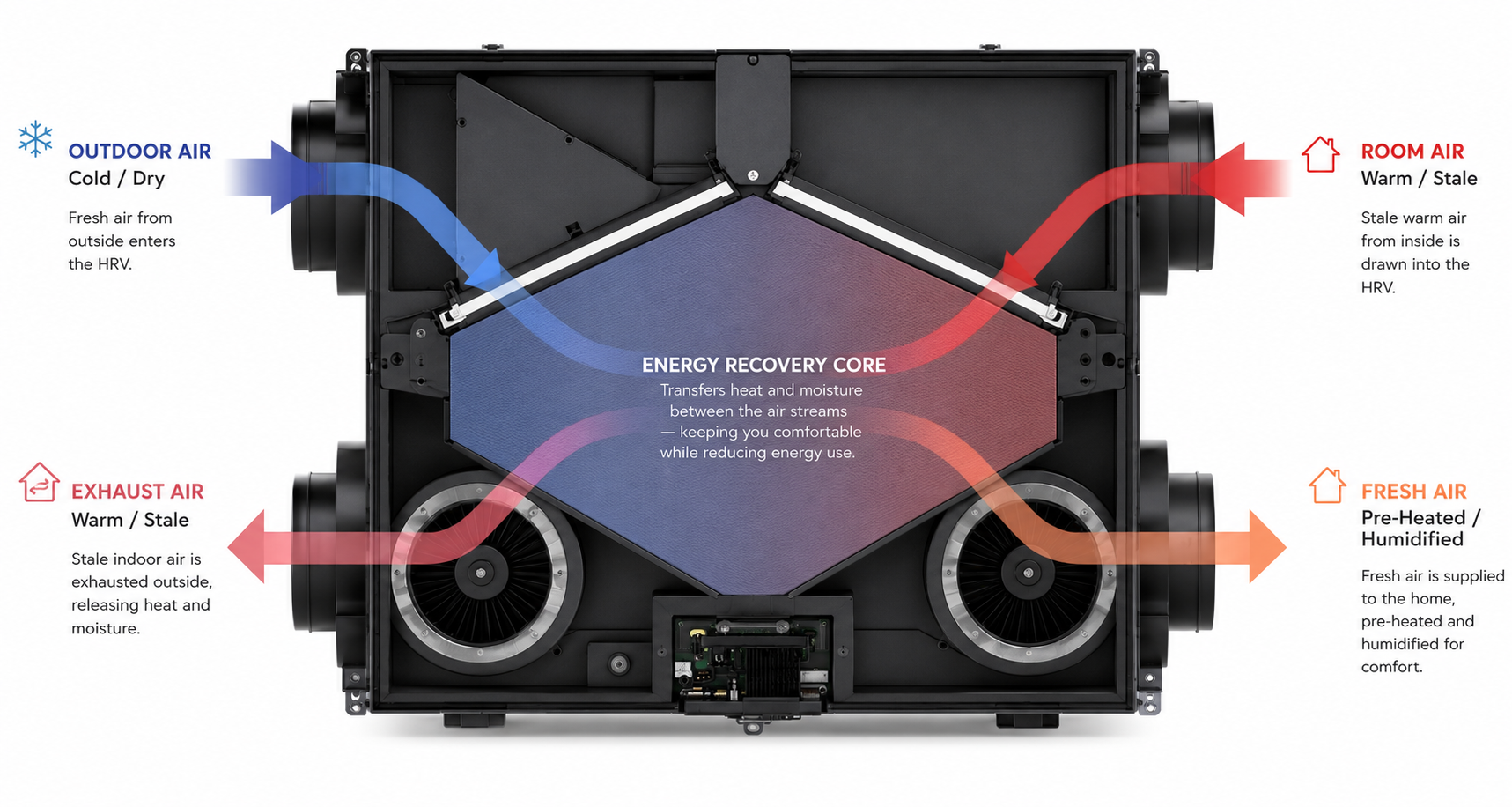

A quiet exchange of heat and moisture.
Inside every Ventiq ERV, two airstreams flow past each other through a cross-flow exchanger. Energy and water vapor migrate from the warmer, more humid stream to the cooler, drier one — without the streams ever mixing.
- Summer: incoming hot, humid air is pre-cooled and dehumidified by the conditioned exhaust.
- Winter: outgoing warm room air pre-heats and humidifies the cold, dry intake.
Measured per CSA C439 at standard cooling conditions.
Rated airflow at residential duct system pressures.
Recirculation defrost protects the core in deep cold.
Let's talk ventilation.
Specifying the ERV-168 for a project, looking to become a dealer, or need installation support? Drop us a line.
